Develocity IntelliJ Plugin User Manual

Version: 1.0.2

This documentation is for the latest version and is generally applicable to older releases. If you are using a past version, please remember to adjust any version numbers in the code snippets to match your current installation.

The Develocity IntelliJ plugin seamlessly integrates Develocity and Build Scan capabilities directly into your IDE. It displays a live timeline of task execution and resource usage within your IntelliJ IDE.

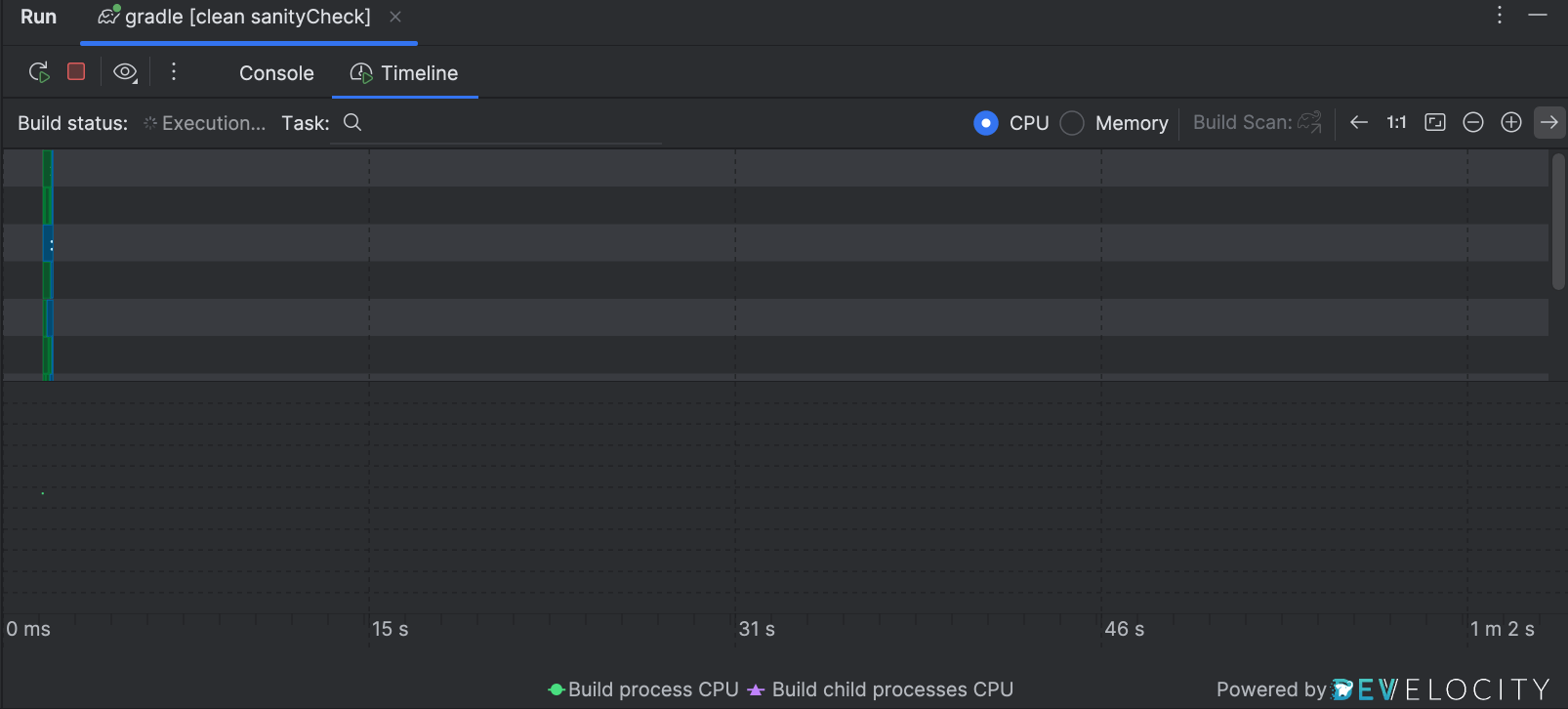

Live Build Timeline

Moreover, it provides a streamlined Develocity configuration for local builds by allowing you to apply and configure the Develocity Gradle plugin to your projects, simplifying the adoption of build performance optimization and troubleshooting.

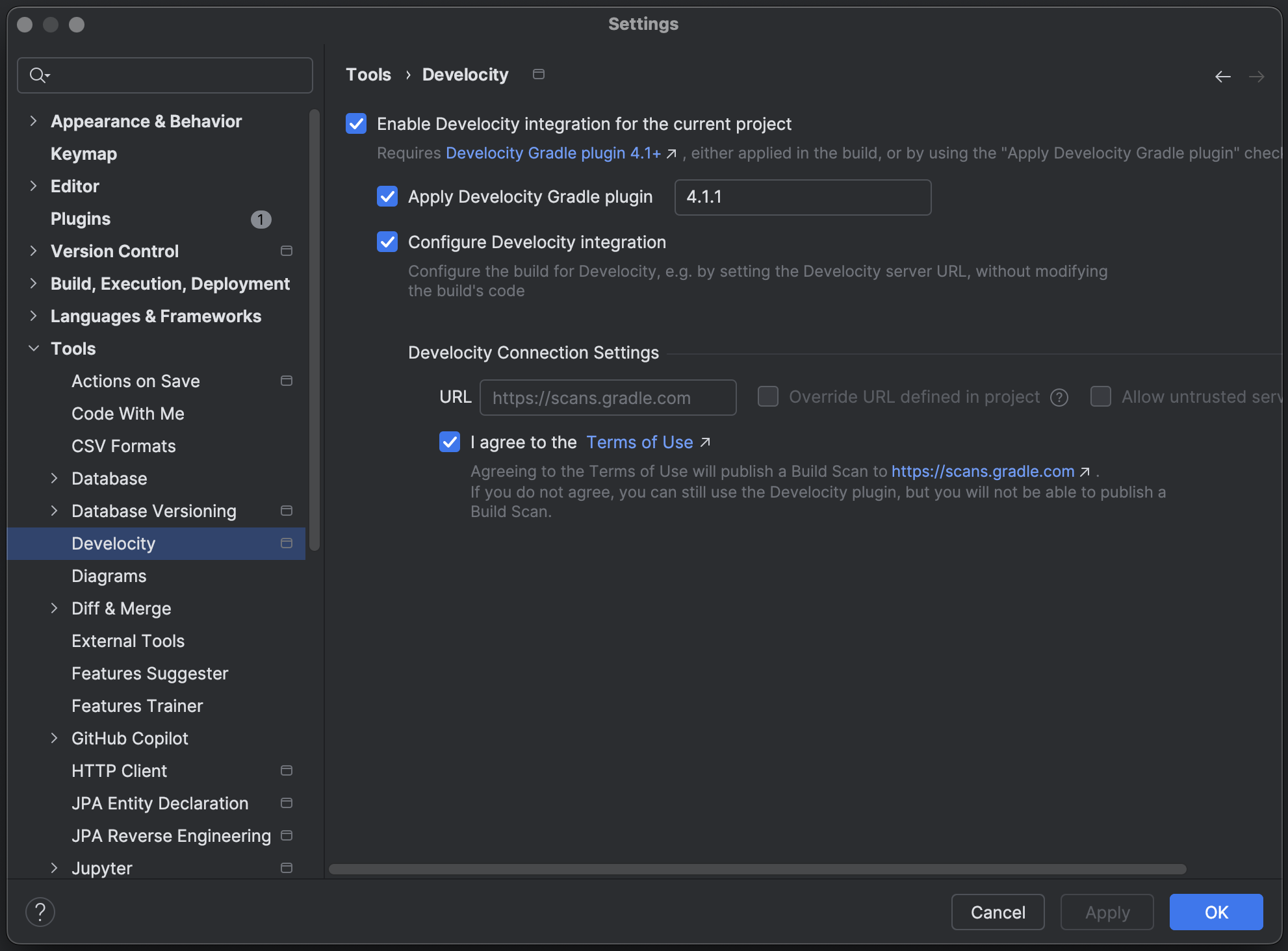

Streamlined Develocity Configuration

Installation

To install the plugin:

Open IntelliJ IDEA.
Go to File Settings (or IntelliJ IDEA Settings on macOS).
Navigate to Plugins.
Select the Marketplace tab.
Search for "Develocity".
Click Install next to the "Develocity" plugin and restart your IDE when prompted.

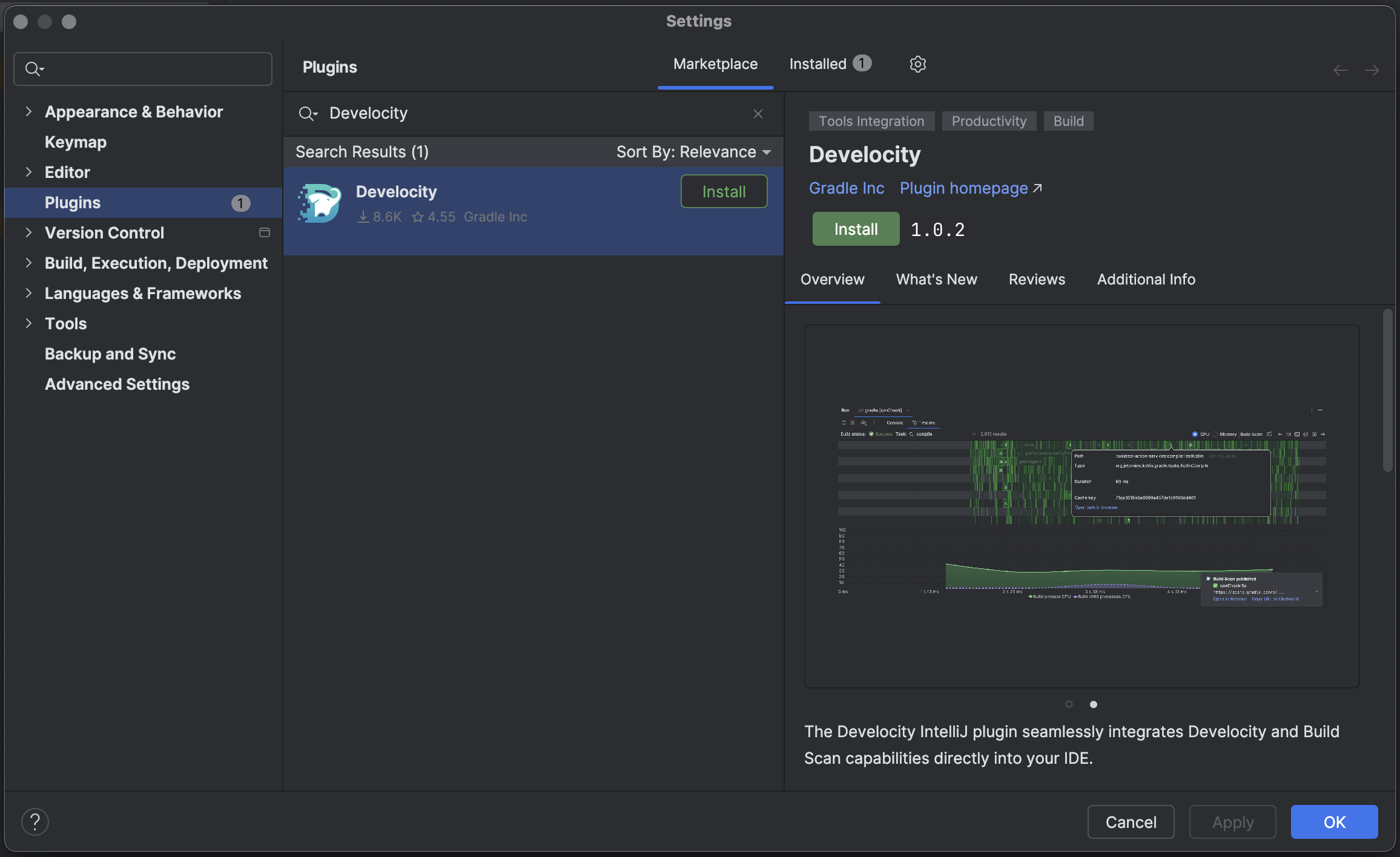

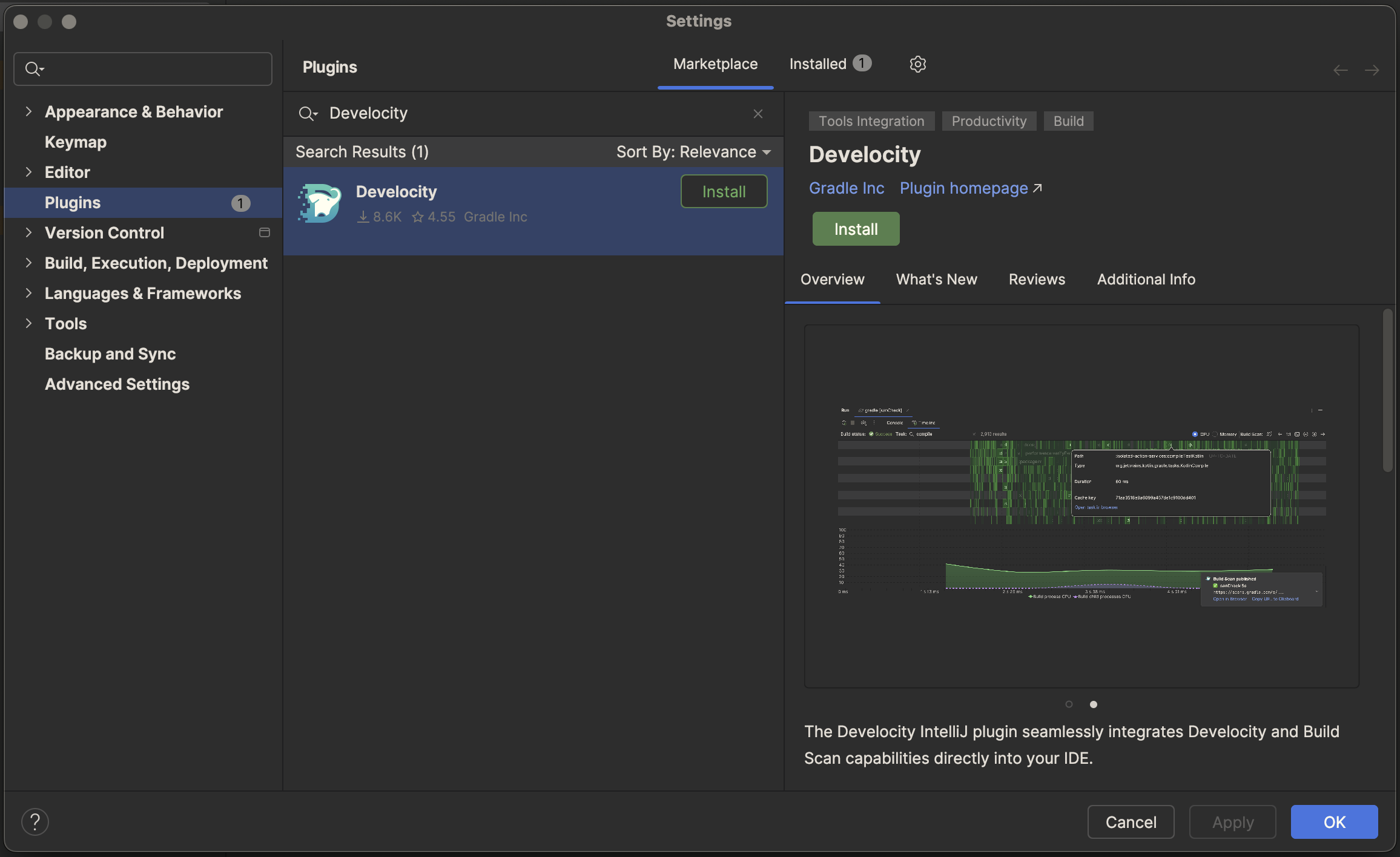

Plugin Installation

Quick Start

To use the live build timeline, the plugin requires the Develocity Gradle plugin 4.1 or newer to be manually applied or auto-injected into your Gradle build.

To manually apply the Develocity Gradle plugin, add the following to your settings file:

Kotlin
Groovy

settings.gradle.kts

plugins {
    id("com.gradle.develocity") version("4.2.2")
}

develocity {
    // configuration
}

settings.gradle

plugins {
    id "com.gradle.develocity" version "4.2.2"
}

develocity {
    // configuration
}

You are now ready to use the plugin.

For additional details on the Develocity Gradle Plugin, refer to the Develocity Gradle Plugin User Manual.

If your build doesn’t apply the Develocity Gradle plugin, you can configure auto-injection right from within IntelliJ.

Usage

Live Build Timeline

Start a Gradle build from within IntelliJ IDEs (e.g., Gradle sync, or run a test that delegates to Gradle).

Observe the live timeline and resource graphs appearing directly in your run window (or the build window for Sync).

Plugin Usage

Individual task can be hovered to see more details, such as the task type, duration and potential non-cacheable and out-of-date reasons.

The build phase is displayed and updated while the build is running, with the following values: Initialization → Configuration → Execution → End of build → Success / Failed / Interrupted.

Build Scan publication

(requires Develocity Gradle plugin 4.1.1+)

When your build publishes a Build Scan to a Develocity instance, a notification appears in the bottom-right corner of your IDE, allowing you to open the Build Scan in your browser, or copy its URL. You can also access your Build Scan via a button in the timeline view, or directly to a given task via its popup menu.

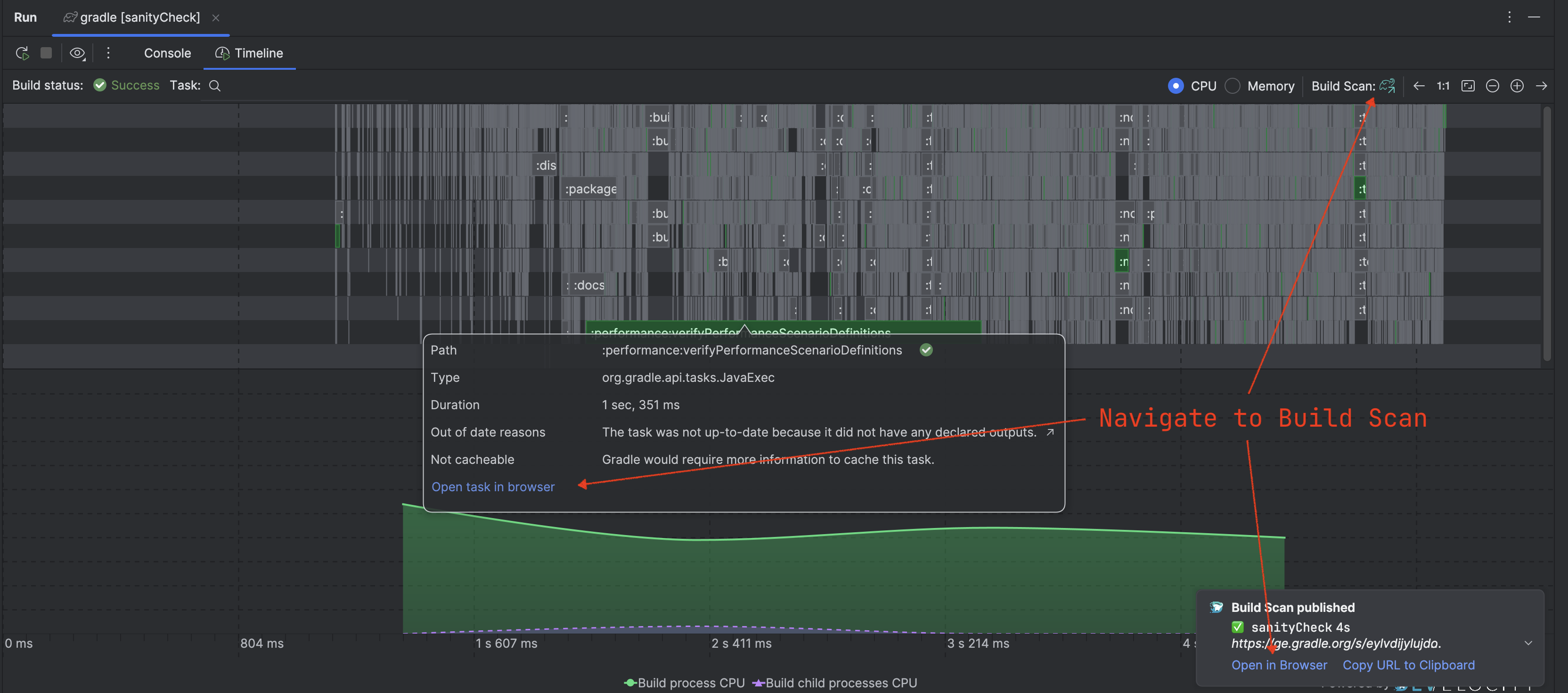

Accessing the published Build Scan for the build

Configuration

There are three ways to configure this plugin for auto-injection (where the Develocity Gradle plugin is applied for you):

Without Build Scan - Reports aren’t published.
With Develocity - Reports are published to your Develocity instances.
With scans.gradle.com - Reports are published to scans.gradle.com.

Navigate to the settings screen:

Go to File Settings (or IntelliJ IDEA Settings on macOS).
Navigate to Tools Develocity.
Select "Configure Develocity Integration" to enable auto-injection

Plugin Configuration

Without Build Scan

If you don’t want to publish Build Scan reports, simply enable auto-injection and specify the Develocity Gradle plugin version without specifying a server or accepting the terms of use.

With Develocity

To publish Build Scan reports to an existing Develocity instance, set the server URL to its location and specify the Develocity Gradle plugin version.

If necessary, check the Gradle plugin user manual for instructions on authenticating.

With scans.gradle.com

To publish Build Scan reports to scans.gradle.com, agree to the terms of use and specify the Develocity Gradle plugin version.

Troubleshooting

Live Build Timeline shows no data

Symptom: The timeline view displays a message like "Something went wrong and no data was received from the build."
Cause: The Develocity IntelliJ plugin is not receiving data from the Develocity Gradle plugin. This typically happens if the Gradle plugin version applied to your build is older than 4.1.
Solution: Ensure your build applies Develocity Gradle plugin 4.1 or newer.

Live Build Timeline is affecting the performance of my machine

Symptom: CPU usage spikes when the timeline view is visible.
Cause: The timeline view might repaint too frequently for the capabilities of your machine.
Solution: Go to Help Find Action, and type Registry to open the IDE registry. Then look for the key com.gradle.develocity.ide.timeline.refresh.millis. You can specify any value between 10ms and 5000ms. Try a bigger value to reduce the performance impact of the timeline view.
